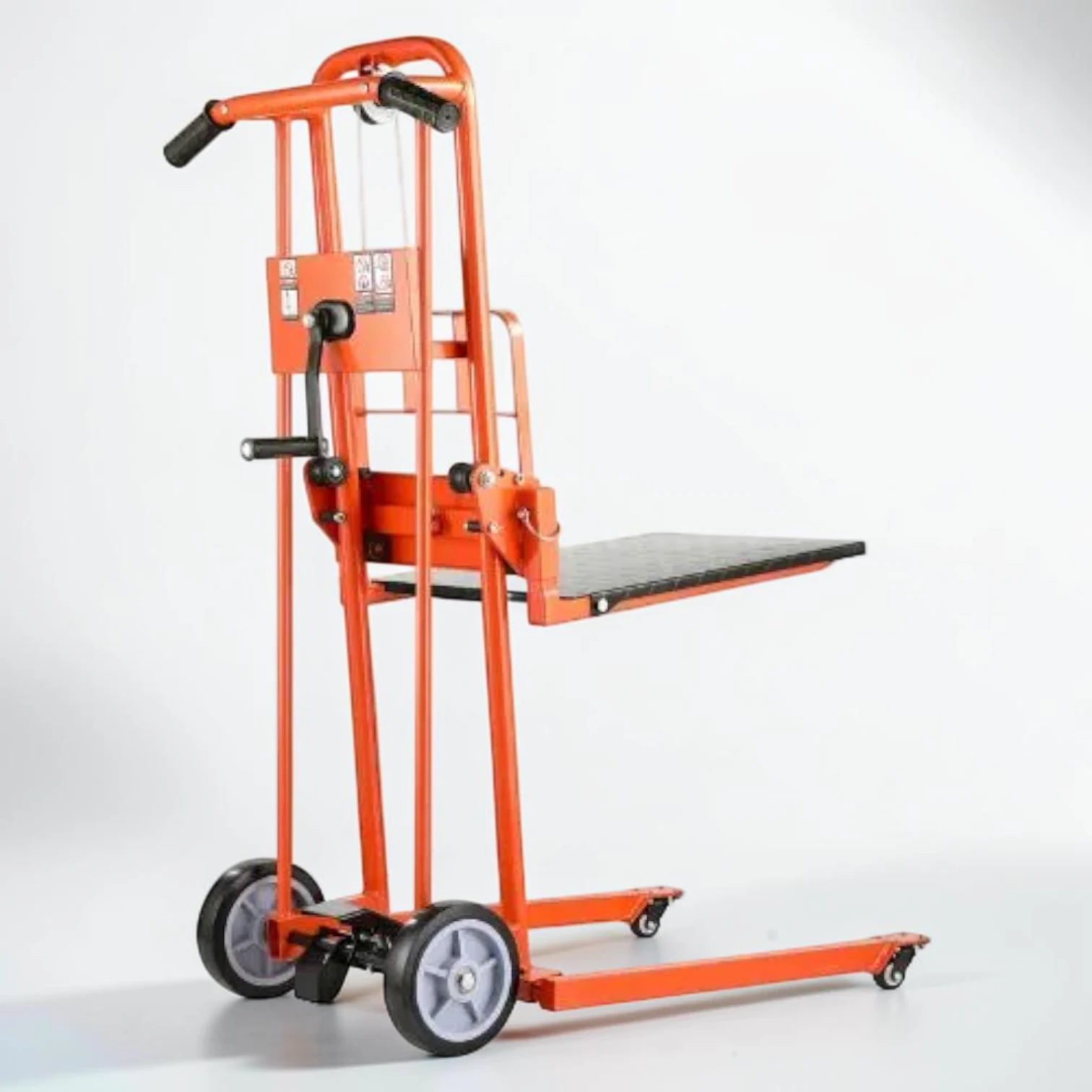

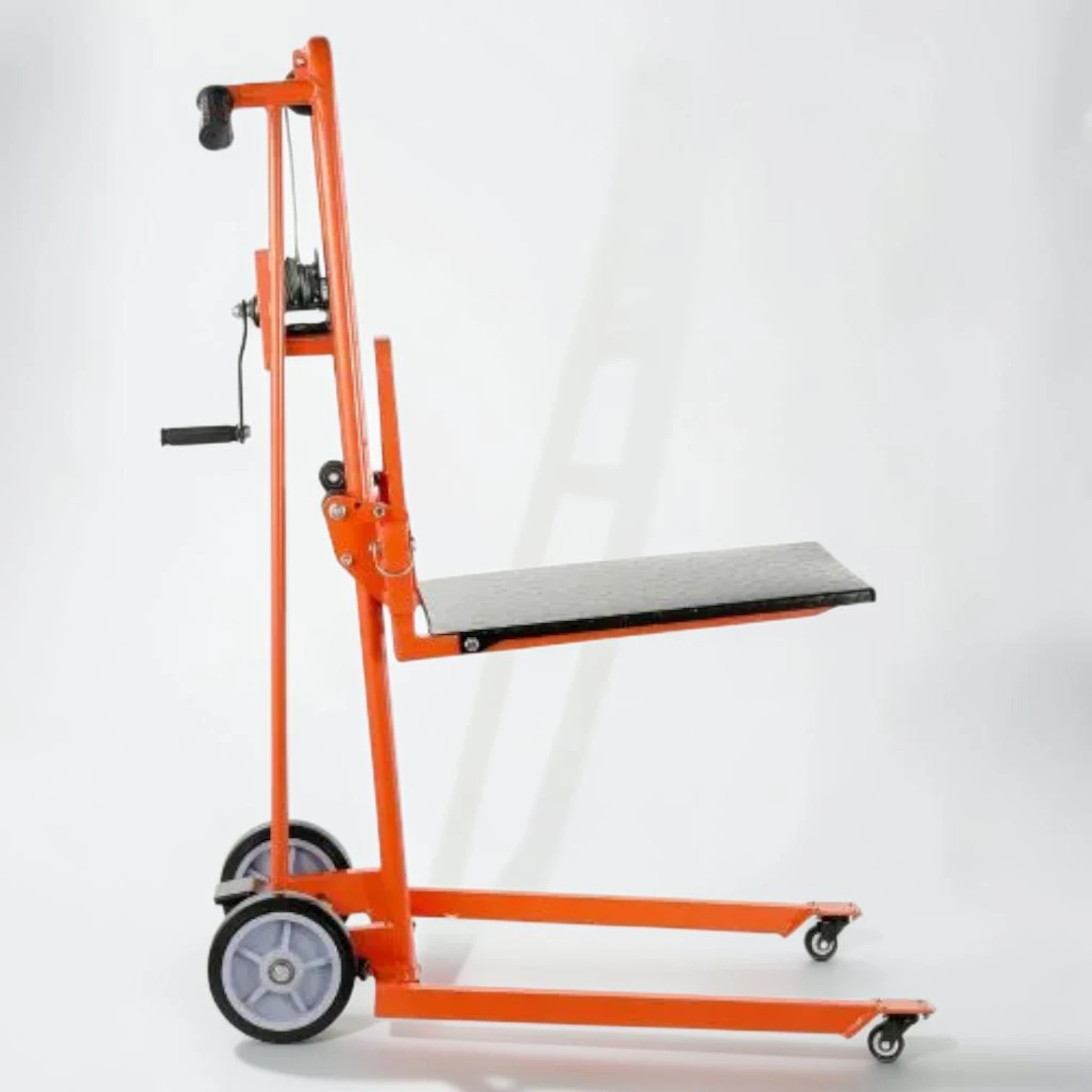

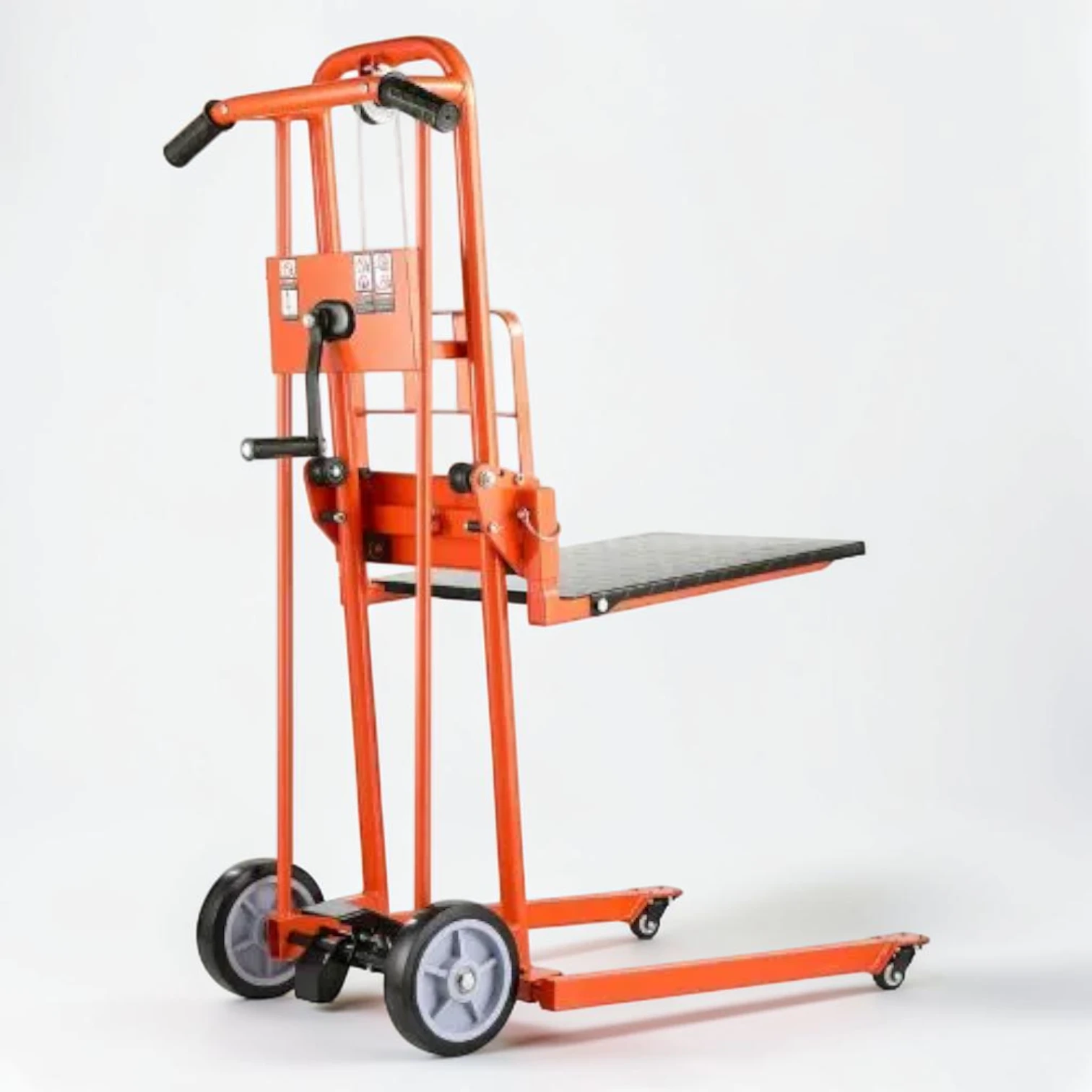

Material Lift Winch Stacker, 330lbs Capacity Pallet Truck, Carbon Steel Q235, 42.9in Max Lifting Height
$186.00
This material lift winch stacker provides a mechanical solution for vertical lifting and horizontal transport. designed with a robust Q235 carbon steel frame, the structure is designed for stability during operation. The unit incorporates a manual winch system, enabling height adjustments in environments where electrical power is unavailable. Specifications: Load Capacity: 330 lbs (149.68 kg) Main Material: Carbon Steel Q235 Lift Height Range: 4.3 to 42.9 inches (110 to 1090 mm) Wire Rope Breaking Strength: 990 lbs (449 kg) Product Dimensions: 37.4 x 23.6 x 52.8 inches (950 x 600 x 1340 mm) The equipment is equipped with universal front wheels and rear wheels featuring integrated brakes to assist with positioning and stationary security.
This material lift winch stacker provides a mechanical solution for vertical lifting and horizontal transport. designed with a robust Q235 carbon steel frame, the structure is designed for stability during operation. The unit incorporates a manual winch system, enabling height adjustments in environments where electrical power is unavailable.
Specifications:
- Load Capacity: 330 lbs (149.68 kg)
- Main Material: Carbon Steel Q235
- Lift Height Range: 4.3 to 42.9 inches (110 to 1090 mm)
- Wire Rope Breaking Strength: 990 lbs (449 kg)
- Product Dimensions: 37.4 x 23.6 x 52.8 inches (950 x 600 x 1340 mm)
The equipment is equipped with universal front wheels and rear wheels featuring integrated brakes to assist with positioning and stationary security. The steel wire rope is galvanized to provide resistance to environmental factors. This stacker is suitable for use in warehouses, factories, and retail stockrooms requiring consistent vertical load management.
